  • 【菲罗门总代】ACE Phenyl 苯基柱
详情
ACE Phenyl 色谱柱介绍
分离机制 相互作用的强度
疏水性结合的相互作用 中等/弱
π-π相互作用
偶极-偶极相互作用 中等

ACE Phenyl  色谱柱目标分析物:

· 带有π键的分析物
· 具有电子离域和吸电子基团如卤素、硝基、酮、酯和酸的分析物
· 具有质子供体基团的分析物
· 具有不同偶极矩的分析物



ACE Phenyl 色谱柱推荐应用:

· 立体异构体
· 类固醇类

· 紫杉醇类

· 取代芳烃类

· 高比例水相条件

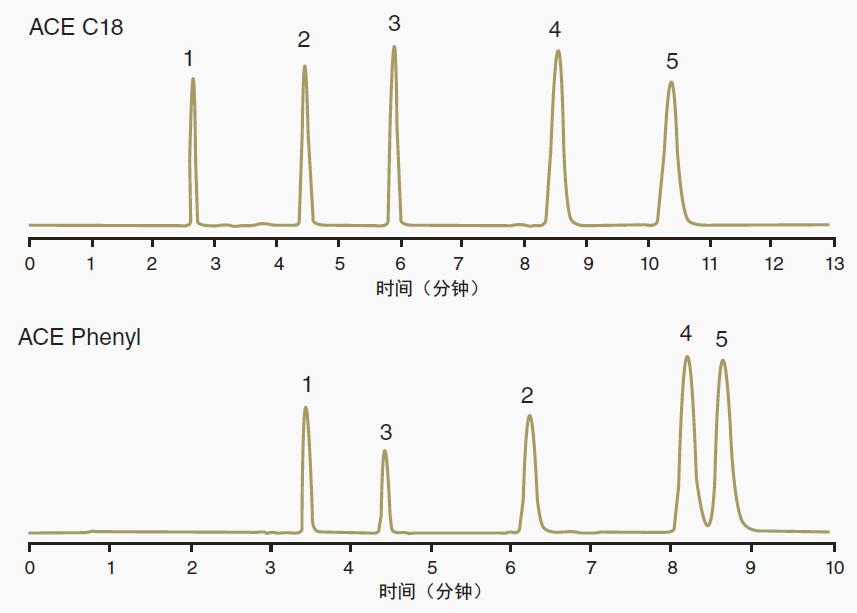

应用案例:C18与苯基相之间选择性差异的比较

色谱柱: 4.6 x 250 mm, 5.0 μm
流动相: 20% 0.025M KH2PO4, pH 6.0 80%甲醇
流速: 1.0 mL/min
温度: 22 ℃

样品:

1. 去甲麻黄碱
2. 去甲替林
3. 甲苯
4. 丙咪嗪
5. 阿米替林

这些比较性色谱图显示C18与苯基相之间在选择性上的巨大差异。与C18相相比,苯基相上峰2和3的洗脱顺序相反。



ACE Phenyl 色谱柱报价和货号:

PRODUCT NO DESCRIPTION
EXL-105-0202U ACE EXCEL 2 PHENYL 20X2.1MM
EXL-105-0302U ACE EXCEL 2 PHENYL 30X2.1MM
EXL-105-3502U ACE EXCEL 2 PHENYL 35X2.1MM
EXL-105-0502U ACE EXCEL 2 PHENYL 50X2.1MM
EXL-105-7502U ACE EXCEL 2 PHENYL 75X2.1MM
EXL-105-1002U ACE EXCEL 2 PHENYL 100X2.1MM
EXL-105-1202U ACE EXCEL 2 PHENYL 125X2.1MM
EXL-105-1502U ACE EXCEL 2 PHENYL 150X2.1MM
EXL-105-0203U ACE EXCEL 2 PHENYL 20X3.0MM
EXL-105-0303U ACE EXCEL 2 PHENYL 30X3.0MM
EXL-105-3503U ACE EXCEL 2 PHENYL 35X3.0MM
EXL-105-0503U ACE EXCEL 2 PHENYL 50X3.0MM
EXL-105-7503U ACE EXCEL 2 PHENYL 75X3.0MM
EXL-105-1003U ACE EXCEL 2 PHENYL 100X3.0MM
EXL-105-1203U ACE EXCEL 2 PHENYL 125X3.0MM
EXL-105-1503U ACE EXCEL 2 PHENYL 150X3.0MM
EXL-105-0246U ACE EXCEL 2 PHENYL 20X4.6MM
EXL-105-0346U ACE EXCEL 2 PHENYL 30X4.6MM
EXL-105-3546U ACE EXCEL 2 PHENYL 35X4.6MM
EXL-105-0546U ACE EXCEL 2 PHENYL 50X4.6MM
EXL-105-7546U ACE EXCEL 2 PHENYL 75X4.6MM
EXL-105-1046U ACE EXCEL 2 PHENYL 100X4.6MM
EXL-105-1246U ACE EXCEL 2 PHENYL 125X4.6MM
EXL-105-1546U ACE EXCEL 2 PHENYL 150X4.6MM
ACE-115-005003GD ACE 3 PHENYL CAPILLARY GUARD CART 0.3MM (FOR 0.3MM ID COLUMNS) (X1)
ACE-115-03003 ACE 3 PHENYL CAPILLARY COLUMN 30 X 0.30MM
ACE-115-05003 ACE 3 PHENYL CAPILLARY COLUMN 50 X 0.30MM
ACE-115-75003 ACE 3 PHENYL CAPILLARY COLUMN 75 X 0.30MM
ACE-115-10003 ACE 3 PHENYL CAPILLARY COLUMN 100 X 0.30MM
ACE-115-12003 ACE 3 PHENYL CAPILLARY COLUMN 125 X 0.30MM
ACE-115-15003 ACE 3 PHENYL CAPILLARY COLUMN 150 X 0.30MM
ACE-115-25003 ACE 3 PHENYL CAPILLARY COLUMN 250 X 0.30MM
ACE-115-005005GD ACE 3 PHENYL CAPILLARY GUARD CART 0.5MM (FOR 0.5MM ID COLUMNS) (X1)
ACE-115-0101GD ACE 3 PHENYL 1.0MM GUARD CART (FOR 1.0MM ID COLUMNS) (X5)
ACE-115-0301 ACE 3 PHENYL 30X1.0MM
ACE-115-3501 ACE 3 PHENYL 35X1.0MM
ACE-115-0501 ACE 3 PHENYL 50X1.0MM
ACE-115-7501 ACE 3 PHENYL 75X1.0MM
ACE-115-1001 ACE 3 PHENYL 100X1.0MM
ACE-115-1201 ACE 3 PHENYL 125X1.0MM
ACE-115-1501 ACE 3 PHENYL 150X1.0MM
ACE-115-2501 ACE 3 PHENYL 250X1.0MM
ACE-115-0102GD ACE 3 PHENYL 2.1MM GUARD CART (FOR 2.1MM ID COLUMNS) (X5)
ACE-115-0202 ACE 3 PHENYL 20X2.1MM
EXL-115-0202U ACE EXCEL 3 PHENYL 20X2.1MM
ACE-115-0302 ACE 3 PHENYL 30X2.1MM
EXL-115-0302U ACE EXCEL 3 PHENYL 30X2.1MM
ACE-115-3502 ACE 3 PHENYL 35X2.1MM
EXL-115-3502U ACE EXCEL 3 PHENYL 35X2.1MM
ACE-115-0502 ACE 3 PHENYL 50X2.1MM
EXL-115-0502U ACE EXCEL 3 PHENYL 50X2.1MM
ACE-115-7502 ACE 3 PHENYL 75X2.1MM
EXL-115-7502U ACE EXCEL 3 PHENYL 75X2.1MM
ACE-115-1002 ACE 3 PHENYL 100X2.1MM
EXL-115-1002U ACE EXCEL 3 PHENYL 100X2.1MM
ACE-115-1202 ACE 3 PHENYL 125X2.1MM
EXL-115-1202U ACE EXCEL 3 PHENYL 125X2.1MM
ACE-115-1502 ACE 3 PHENYL 150X2.1MM
EXL-115-1502U ACE EXCEL 3 PHENYL 150X2.1MM
ACE-115-2502 ACE 3 PHENYL 250X2.1MM
EXL-115-2502U ACE EXCEL 3 PHENYL 250X2.1MM
ACE-115-0103GD ACE 3 PHENYL ANALYTICAL GUARD CART (FOR 3.0 - 4.6MM ID COLUMNS) (X5)
ACE-115-0203 ACE 3 PHENYL 20X3.0MM
EXL-115-0203U ACE EXCEL 3 PHENYL 20X3.0MM
ACE-115-0303 ACE 3 PHENYL 30X3.0MM
EXL-115-0303U ACE EXCEL 3 PHENYL 30X3.0MM
ACE-115-3503 ACE 3 PHENYL 35X3.0MM
EXL-115-3503U ACE EXCEL 3 PHENYL 35X3.0MM
ACE-115-0503 ACE 3 PHENYL 50X3.0MM
EXL-115-0503U ACE EXCEL 3 PHENYL 50X3.0MM
ACE-115-7503 ACE 3 PHENYL 75X3.0MM
EXL-115-7503U ACE EXCEL 3 PHENYL 75X3.0MM
ACE-115-1003 ACE 3 PHENYL 100X3.0MM
EXL-115-1003U ACE EXCEL 3 PHENYL 100X3.0MM
ACE-115-1203 ACE 3 PHENYL 125X3.0MM
EXL-115-1203U ACE EXCEL 3 PHENYL 125X3.0MM
ACE-115-1503 ACE 3 PHENYL 150X3.0MM
EXL-115-1503U ACE EXCEL 3 PHENYL 150X3.0MM
ACE-115-2503 ACE 3 PHENYL 250X3.0MM
EXL-115-2503U ACE EXCEL 3 PHENYL 250X3.0MM
ACE-115-3504 ACE 3 PHENYL 35X4.0MM
ACE-115-0504 ACE 3 PHENYL 50X4.0MM
ACE-115-7504 ACE 3 PHENYL 75X4.0MM
ACE-115-1004 ACE 3 PHENYL 100X4.0MM
ACE-115-1204 ACE 3 PHENYL 125X4.0MM
ACE-115-1504 ACE 3 PHENYL 150X4.0MM
ACE-115-2504 ACE 3 PHENYL 250X4.0MM
ACE-115-0246 ACE 3 PHENYL 20X4.6MM
EXL-115-0246U ACE EXCEL 3 PHENYL 20X4.6MM
ACE-115-0346 ACE 3 PHENYL 30X4.6MM
EXL-115-0346U ACE EXCEL 3 PHENYL 30X4.6MM
ACE-115-3546 ACE 3 PHENYL 35X4.6MM
EXL-115-3546U ACE EXCEL 3 PHENYL 35X4.6MM
ACE-115-0546 ACE 3 PHENYL 50X4.6MM
EXL-115-0546U ACE EXCEL 3 PHENYL 50X4.6MM
ACE-115-7546 ACE 3 PHENYL 75X4.6MM
EXL-115-7546U ACE EXCEL 3 PHENYL 75X4.6MM
ACE-115-1046 ACE 3 PHENYL 100X4.6MM
EXL-115-1046U ACE EXCEL 3 PHENYL 100X4.6MM
ACE-115-1246 ACE 3 PHENYL 125X4.6MM
EXL-115-1246U ACE EXCEL 3 PHENYL 125X4.6MM
ACE-115-1546 ACE 3 PHENYL 150X4.6MM
EXL-115-1546U ACE EXCEL 3 PHENYL 150X4.6MM
ACE-115-2046 ACE 3 PHENYL 200 X 4.6MM
ACE-115-2546 ACE 3 PHENYL 250X4.6MM
EXL-115-2546U ACE EXCEL 3 PHENYL 250X4.6MM
ACE-125-005003GD ACE 5 PHENYL CAPILLARY GUARD CART 0.3MM (FOR 0.3MM ID COLUMNS) (X1)
ACE-125-03003 ACE 5 PHENYL CAPILLARY COLUMN 30 X 0.30MM
ACE-125-05003 ACE 5 PHENYL CAPILLARY COLUMN 50 X 0.30MM
ACE-125-75003 ACE 5 PHENYL CAPILLARY COLUMN 75 X 0.30MM
ACE-125-10003 ACE 5 PHENYL CAPILLARY COLUMN 100 X 0.30MM
ACE-125-12003 ACE 5 PHENYL CAPILLARY COLUMN 125 X 0.30MM
ACE-125-15003 ACE 5 PHENYL CAPILLARY COLUMN 150 X 0.30MM
ACE-125-25003 ACE 5 PHENYL CAPILLARY COLUMN 250 X 0.30MM
ACE-125-30003 ACE 5 PHENYL CAPILLARY COLUMN 300 X 0.30MM
ACE-125-005005GD ACE 5 PHENYL CAPILLARY GUARD CART 0.5MM (FOR 0.5MM ID COLUMNS) (X1)
ACE-125-0101GD ACE 5 PHENYL 1.0MM GUARD CART (FOR 1.0MM ID COLUMNS) (X5)
ACE-125-0301 ACE 5 PHENYL 30X1.0MM
ACE-125-3501 ACE 5 PHENYL 35X1.0MM
ACE-125-0501 ACE 5 PHENYL 50X1.0MM
ACE-125-7501 ACE 5 PHENYL 75X1.0MM
ACE-125-1001 ACE 5 PHENYL 100X1.0MM
ACE-125-1201 ACE 5 PHENYL 125X1.0MM
ACE-125-1501 ACE 5 PHENYL 150X1.0MM
ACE-125-2501 ACE 5 PHENYL 250X1.0MM
ACE-125-0102GD ACE 5 PHENYL 2.1MM GUARD CART (FOR 2.1MM ID COLUMNS) (X5)
ACE-125-0202 ACE 5 PHENYL 20X2.1MM
EXL-125-0202U ACE EXCEL 5 PHENYL 20X2.1MM
ACE-125-0302 ACE 5 PHENYL 30X2.1MM
EXL-125-0302U ACE EXCEL 5 PHENYL 30X2.1MM
ACE-125-3502 ACE 5 PHENYL 35X2.1MM
ACE-125-0502 ACE 5 PHENYL 50X2.1MM
EXL-125-0502U ACE EXCEL 5 PHENYL 50X2.1MM
ACE-125-7502 ACE 5 PHENYL 75X2.1MM
EXL-125-7502U ACE EXCEL 5 PHENYL 75X2.1MM
ACE-125-1002 ACE 5 PHENYL 100X2.1MM
EXL-125-1002U ACE EXCEL 5 PHENYL 100X2.1MM
ACE-125-1202 ACE 5 PHENYL 125X2.1MM
EXL-125-1202U ACE EXCEL 5 PHENYL 125X2.1MM
ACE-125-1502 ACE 5 PHENYL 150X2.1MM
EXL-125-1502U ACE EXCEL 5 PHENYL 150X2.1MM
ACE-125-2502 ACE 5 PHENYL 250X2.1MM
EXL-125-2502U ACE EXCEL 5 PHENYL 250X2.1MM
ACE-125-3002 ACE 5 PHENYL 300X2.1MM
ACE-125-0103GD ACE 5 PHENYL ANALYTICAL GUARD CART (FOR 3.0 - 4.6MM ID COLUMNS) (X5)
ACE-125-0203 ACE 5 PHENYL 20X3.0MM
EXL-125-0203U ACE EXCEL 5 PHENYL 20X3.0MM
ACE-125-0303 ACE 5 PHENYL 30X3.0MM
EXL-125-0303U ACE EXCEL 5 PHENYL 30X3.0MM
ACE-125-3503 ACE 5 PHENYL 35X3.0MM
ACE-125-0503 ACE 5 PHENYL 50X3.0MM
EXL-125-0503U ACE EXCEL 5 PHENYL 50X3.0MM
ACE-125-7503 ACE 5 PHENYL 75X3.0MM
EXL-125-7503U ACE EXCEL 5 PHENYL 75X3.0MM
ACE-125-1003 ACE 5 PHENYL 100X3.0MM
EXL-125-1003U ACE EXCEL 5 PHENYL 100X3.0MM
ACE-125-1203 ACE 5 PHENYL 125X3.0MM
EXL-125-1203U ACE EXCEL 5 PHENYL 125X3.0MM
ACE-125-1503 ACE 5 PHENYL 150X3.0MM
EXL-125-1503U ACE EXCEL 5 PHENYL 150X3.0MM
ACE-125-2503 ACE 5 PHENYL 250X3.0MM
EXL-125-2503U ACE EXCEL 5 PHENYL 250X3.0MM
ACE-125-3003 ACE 5 PHENYL 300X3.0MM
ACE-125-3504 ACE 5 PHENYL 35X4.0MM
ACE-125-0504 ACE 5 PHENYL 50X4.0MM
ACE-125-7504 ACE 5 PHENYL 75X4.0MM
ACE-125-1004 ACE 5 PHENYL 100X4.0MM
ACE-125-1204 ACE 5 PHENYL 125X4.0MM
ACE-125-1504 ACE 5 PHENYL 150X4.0MM
ACE-125-2504 ACE 5 PHENYL 250X4.0MM
ACE-125-3004 ACE 5 PHENYL 300X4.0MM
ACE-125-0246 ACE 5 PHENYL 20X4.6MM
EXL-125-0246U ACE EXCEL 5 PHENYL 20X4.6MM
ACE-125-0346 ACE 5 PHENYL 30X4.6MM
EXL-125-0346U ACE EXCEL 5 PHENYL 30X4.6MM
ACE-125-3546 ACE 5 PHENYL 35X4.6MM
ACE-125-0546 ACE 5 PHENYL 50X4.6MM
EXL-125-0546U ACE EXCEL 5 PHENYL 50X4.6MM
ACE-125-7546 ACE 5 PHENYL 75X4.6MM
EXL-125-7546U ACE EXCEL 5 PHENYL 75X4.6MM
ACE-125-1046 ACE 5 PHENYL 100X4.6MM
EXL-125-1046U ACE EXCEL 5 PHENYL 100X4.6MM
ACE-125-1246 ACE 5 PHENYL 125X4.6MM
EXL-125-1246U ACE EXCEL 5 PHENYL 125X4.6MM
ACE-125-1546 ACE 5 PHENYL 150X4.6MM
EXL-125-1546U ACE EXCEL 5 PHENYL 150X4.6MM
ACE-125-2546 ACE 5 PHENYL 250X4.6MM
EXL-125-2546U ACE EXCEL 5 PHENYL 250X4.6MM
ACE-125-3046 ACE 5 PHENYL 300X4.6MM
ACE-125-0508 ACE 5 PHENYL 50X7.75MM
ACE-125-7508 ACE 5 PHENYL 75X7.75MM
ACE-125-1008 ACE 5 PHENYL 100X7.75MM
ACE-125-1208 ACE 5 PHENYL 125X7.75MM
ACE-125-1508 ACE 5 PHENYL 150X7.75MM
ACE-125-2508 ACE 5 PHENYL 250X7.75MM
ACE-125-3008 ACE 5 PHENYL 300X7.75MM
ACE-125-0110GD ACE 5 PHENYL SEMI-PREP GUARD CART (FOR 7.75 - 21.2MM ID COLUMNS) (X3)
ACE-125-0510 ACE 5 PHENYL 50X10.0MM
ACE-125-7510 ACE 5 PHENYL 75X10.0MM
ACE-125-1010 ACE 5 PHENYL 100X10.0MM
ACE-125-1210 ACE 5 PHENYL 125X10.0MM
ACE-125-1510 ACE 5 PHENYL 150X10.0MM
ACE-125-2510 ACE 5 PHENYL 250X10.0MM
ACE-125-3010 ACE 5 PHENYL 300X10.0MM
ACE-125-0120GD ACE 5 PHENYL PREP GUARD CART (FOR 30MM ID COLUMNS) (X3)
ACE-125-0520 ACE 5 PHENYL 50X21.2MM
ACE-125-7520 ACE 5 PHENYL 75X21.2MM
ACE-125-1020 ACE 5 PHENYL 100X21.2MM
ACE-125-1220 ACE 5 PHENYL 125X21.2MM
ACE-125-1520 ACE 5 PHENYL 150X21.2MM
ACE-125-2520 ACE 5 PHENYL 250X21.2MM
ACE-125-3020 ACE 5 PHENYL 300X21.2MM
ACE-125-0530 ACE 5 PHENYL 50X30.0MM
ACE-125-7530 ACE 5 PHENYL 75X30.0MM
ACE-125-1030 ACE 5 PHENYL 100X30.0MM
ACE-125-1530 ACE 5 PHENYL 150X30.0MM
ACE-125-2530 ACE 5 PHENYL 250X30.0MM
ACE-125-3030 ACE 5 PHENYL 300X30.0MM
ACE-135-7502 ACE 10 PHENYL 75 X 2.1MM
ACE-135-0103GD ACE 10 PHENYL ANALYTICAL GUARD CART (FOR 3.0 - 4.6MM ID COLUMNS) (X5)
ACE-135-3039 ACE 10 PHENYL 300 X 3.9MM
ACE-135-1504 ACE 10 PHENYL 150 X 4.0MM
ACE-135-3004 ACE 10 PHENYL 300 X 4.0MM
ACE-135-0246 ACE 10 PHENYL 20X4.6MM
ACE-135-0346 ACE 10 PHENYL 30X4.6MM
ACE-135-3546 ACE 10 PHENYL 35X4.6MM
ACE-135-0546 ACE 10 PHENYL 50X4.6MM
ACE-135-7546 ACE 10 PHENYL 75X4.6MM
ACE-135-1046 ACE 10 PHENYL 100X4.6MM
ACE-135-1246 ACE 10 PHENYL 125X4.6MM
ACE-135-1546 ACE 10 PHENYL 150X4.6MM
ACE-135-2546 ACE 10 PHENYL 250X4.6MM
ACE-135-3046 ACE 10 PHENYL 300X4.6MM
ACE-135-5046 ACE 10 PHENYL 500X4.6MM
ACE-135-0508 ACE 10 PHENYL 50X7.75MM
ACE-135-7508 ACE 10 PHENYL 75X7.75MM
ACE-135-1008 ACE 10 PHENYL 100X7.75MM
ACE-135-1208 ACE 10 PHENYL 125X7.75MM
ACE-135-1508 ACE 10 PHENYL 150X7.75MM
ACE-135-2508 ACE 10 PHENYL 250X7.75MM
ACE-135-3008 ACE 10 PHENYL 300X7.75MM
ACE-135-5008 ACE 10 PHENYL 500X7.75MM
ACE-135-0110GD ACE 10 PHENYL SEMI-PREP GUARD CART (FOR 7.75 - 21.2MM ID COLUMNS) (X3)
ACE-135-0510 ACE 10 PHENYL 50X10.0MM
ACE-135-7510 ACE 10 PHENYL 75X10.0MM
ACE-135-1010 ACE 10 PHENYL 100X10.0MM
ACE-135-1210 ACE 10 PHENYL 125X10.0MM
ACE-135-1510 ACE 10 PHENYL 150X10.0MM
ACE-135-2510 ACE 10 PHENYL 250X10.0MM
ACE-135-3010 ACE 10 PHENYL 300X10.0MM
ACE-135-5010 ACE 10 PHENYL 500X10.0MM
ACE-135-0120GD ACE 10 PHENYL PREP GUARD CART (FOR 30MM ID COLUMNS) (X3)
ACE-135-0520 ACE 10 PHENYL 50X21.2MM
ACE-135-7520 ACE 10 PHENYL 75X21.2MM
ACE-135-1020 ACE 10 PHENYL 100X21.2MM
ACE-135-1220 ACE 10 PHENYL 125X21.2MM
ACE-135-1520 ACE 10 PHENYL 150X21.2MM
ACE-135-2520 ACE 10 PHENYL 250X21.2MM
ACE-135-3020 ACE 10 PHENYL 300X21.2MM
ACE-135-5020 ACE 10 PHENYL 500X21.2MM
ACE-135-0530 ACE 10 PHENYL 50X30.0MM
ACE-135-7530 ACE 10 PHENYL 75X30.0MM
ACE-135-1030 ACE 10 PHENYL 100X30.0MM
ACE-135-1530 ACE 10 PHENYL 150X30.0MM
ACE-135-2530 ACE 10 PHENYL 250X30.0MM
ACE-135-3030 ACE 10 PHENYL 300X30.0MM
ACE-135-5030 ACE 10 PHENYL 500X30.0MM

全国服务热线:020-22826668 | E-mail:gz@gzflm.com
公司地址:广东省广州市天河区天河北路179号尚层国际大厦13层(510620)
Guangzhou FLM Scientific Instrument Co.Ltd
Floor 13, No.179 of North TianHe Road, GuangZhou, 510620, China
CopyRight © 2002-2022 广州菲罗门科学仪器有限公司 版权所有 粤ICP备05059471号
免责声明 | 联系我们 |
信用中国
扫一扫,添加菲罗门公众号
